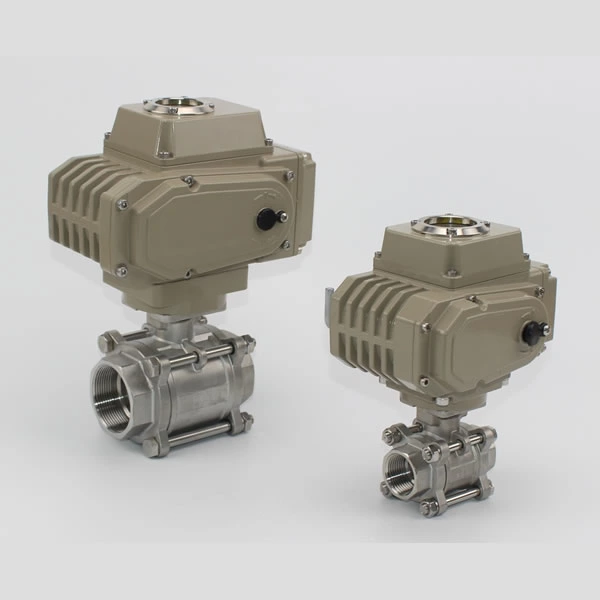

3PC Ball Valve With Electric Actuator
3PC Ball Valve With Electric Actuator
Features
Material:Stainlessa Steel SS304,SS316,WCB,A351,SUS316,
Size:1/4"~4"
Working pressure:1000PSI
Bore:Full bore
connection type:thread
The speci
3PC Ball Valve With Electric Actuator
Features
- Material:Stainlessa Steel SS304,SS316,WCB,A351,SUS316,
- Size:1/4"~4"
- Working pressure:1000PSI
- Bore:Full bore
- connection type:thread
- The specifications can be designed and satisfied for customers'special requirement
| Product name | 3pc Stainless Steel Ball Valve with Electric Actuator |
| 1)Material | A351-CF8,SUS316.PTFE.SUS301 |
| 2)Size | 1/4''-4''&DN6-DN50.8 |
| 3)Certificate | ISO9001: 2000,CE |
| 4)Working pressure | 1000psi(6.4MPa) |
| 5)Connection Ends | Threaded, Butt Weld, Socket Weld |
| 6)Suitable medium | Water, gas, air and some corrosive liquid |
| 7)Temperature Range | -29~230degree C |
| 8)Investment | casting body and cap |
| 9)Seat | PTFE, RTFE, TFM1600PEEK |
| 10)stem | SUS316,SUS304 |
| 11)Locking | Without Locking |
| Our advantage | Survival by quality and development by credibility. Quality first, customer upmost ! |
| 100% leakage tested at 100 psi air under water | |
| Blow-out proof stem, ball are made of ss316 or customer request | |
| Pure Teflon seals and seats | |
| Can do OEM products | |
| Delivery time | usual 30 days around and can negotiate as per order qty |
| Term of Payment | 30% TT deposit, the balance is paid before shipping the goods |
| Package detail | inner CTN, ourside ply-wooden case |
| MOQ | 10 PCS/size |
| Gurantee Period | 18 monthes |
| Capacity to produce | 100, 000 PCS/week |
