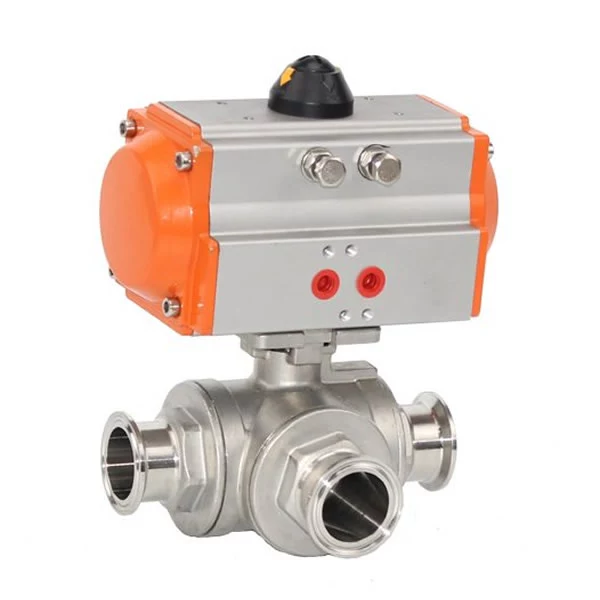

Stainless Steel 3Way Clamp Ball Valve with Actuator
Stainless Steel 3Way Clamp Ball Valve with Actuator
Standard: SMS/DIN/3A/ISO/DS
Body material: AISI 304, 304L, 316, 316L
Flux domination of pipeline: 3/4"-2 1/2" & DN25-100
Seal material:
Stainless Steel 3Way Clamp Ball Valve with Actuator
- Standard: SMS/DIN/3A/ISO/DS
- Body material: AISI 304, 304L, 316, 316L
- Flux domination of pipeline: 3/4"-2 1/2" & DN25-100
- Seal material: EPDM & PTFE
- Connection code: Straight way type & three ways type
- Manual actuator: 90degree adjustment handle
- Working principle: Manual operation or actuating device operation
- Related products: Flange ball valve, 3ways ball valve, 2ways ball valve and so on
Technical Parameter:
- Working pressure: 0-10bar, Min pressure with vaccuum; Max pressure with 10bars
- Working temperature: -10degree ~ 105degree
- External part: Ra<1.6um & Internal part: Ra<0.6um
Advantage:
- Low to torgue design results in cost effective actuation
- Suitable for aggressive chemical enviroment
- Multi-stop handle for fine control, and looking handle option
- Steam self-compresating for temperature and pressure
- Easy to assemble a patented ball-body self alignment feature
- Suitable for pigging system
| Prdouct Name: | Stainless Steel 3way ball valve with Pneumatic actautor |
| Valve Body Material: | SS304/SS316L 1.4404/1.4301 |
| Seal Material: | PTFE+EPDM(Double Layer)/EPDM/Silicon/Vition |
| Max Working Pressure: | 10Bar |
| Max Working Temperature: | 120 degree |
| Availably Size: | 1"-4" |
| Avaliably Connection: | Clamp/Weld/Male Thread |
| Availably Standard: | 3A/DIN/SMS/ISO |
| Certification: | ISO/CE |
| Availably Structure: | Straight way type & Three Ways type |
| Application Scope: | Dairy Food Beverage,Pharmacy,Cosmetic,Chemical etc. |
| Packing Details: | Bubble Pack for Each Valve, Outside Packing are carton or Plywood Cases |
| Delivery Details: | Usually within 20days after received T/T Down Payment |
| Payment Term: | T/T,L/C |
