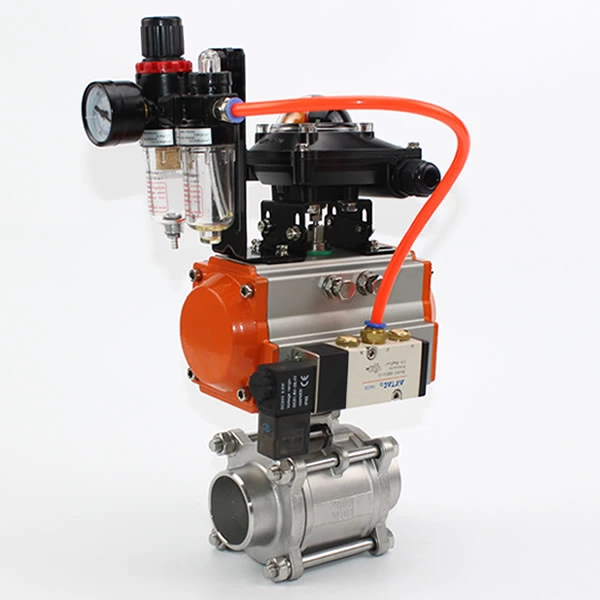

Reduced Bore Three Way Ball Valve with Pnuematic Control
- MOQ：
- 1 PCS
- Prices：
- Negotiable
- Temperature range:
- -20° C ~ 232° C ~ 350° C
- Pressure：
- 1000wog
- Payment Terms：
- L/C, D/A, D/P, T/T, Western Union
- Certification：
- ISO9001
- Packaging Details：
- Carton and wood case
- Delivery Time：
- Depends on the qty of order
- Supply Ability：
- 10000pcs per month
- Place of Origin：
- WENZHOU,CHINA
Reduced Bore Three Way Ball Valve with Pnuematic Control
Thread 3 Way Ball Valve, Flange 3 Way Ball Valve, T Port Thread 3 Way Ball Valve, L Port Thread 3 Way Ball Valve, Flange 3 Way T Port Ball Valve, Flange 3 Way L Port Ball Valve, Three Way Stainless Steel T/L Port Ball Valve with ISO5211 Direct Mounting Pad.
Three- and four-way have an L- or T-shaped hole through the middle. The different combinations of flow are shown in the figure. It is easy to see that a T valve can connect any pair of ports, or all three, together, but the 45 degree position which might disconnect all three leaves no margin for error. The L valve can connect the center port to either side port, or disconnect all three, but it cannot connect the side ports together.
Multi-port ball valves with 4 ways, or more, are also commercially available, the inlet way often being orthogonal to the plane of the outlets. For special applications, such as driving air-powered motors from forward to reverse, the operation is performed by rotating a single lever four-way valve. The 4-way ball valve has two L-shaped ports in the ball that do not interconnect, sometimes referred to as
