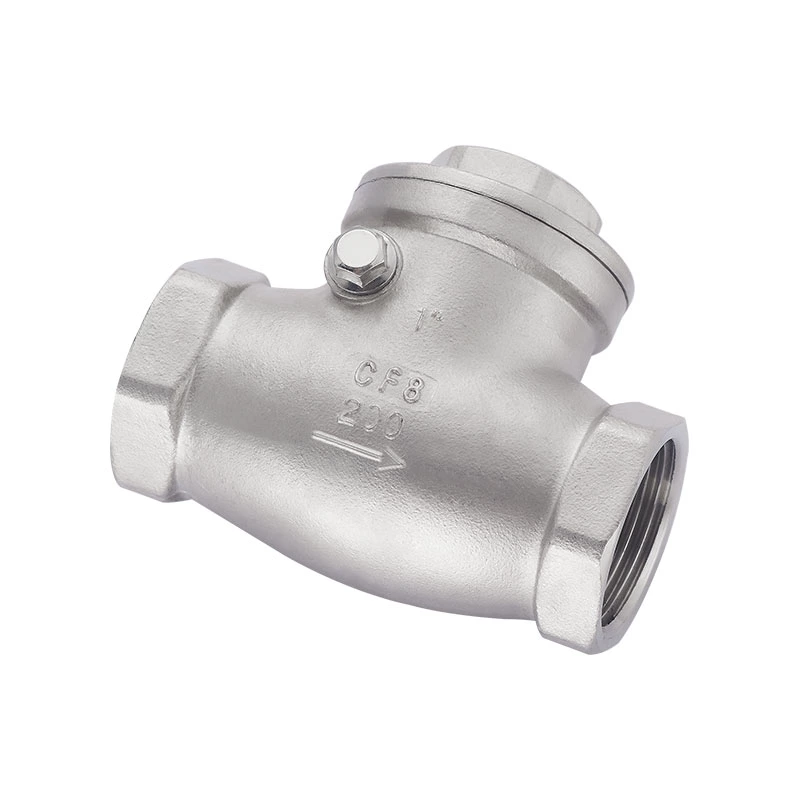

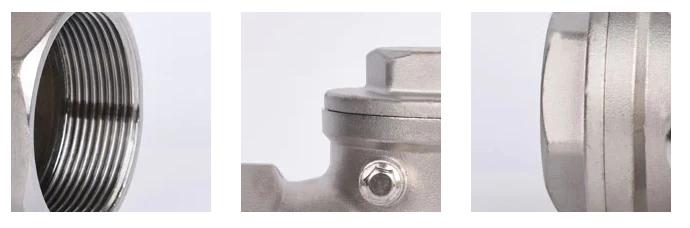

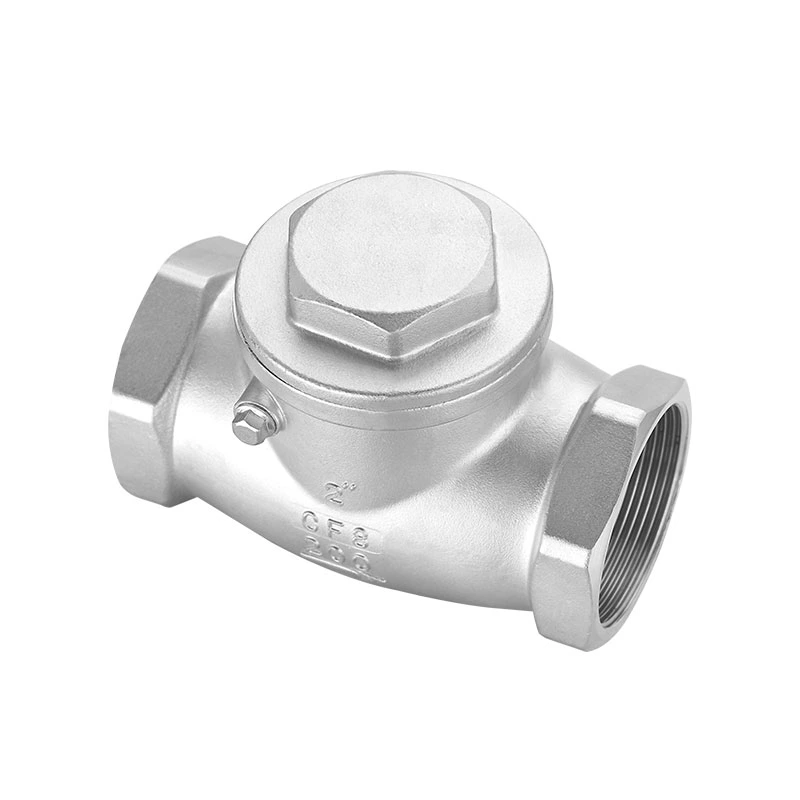

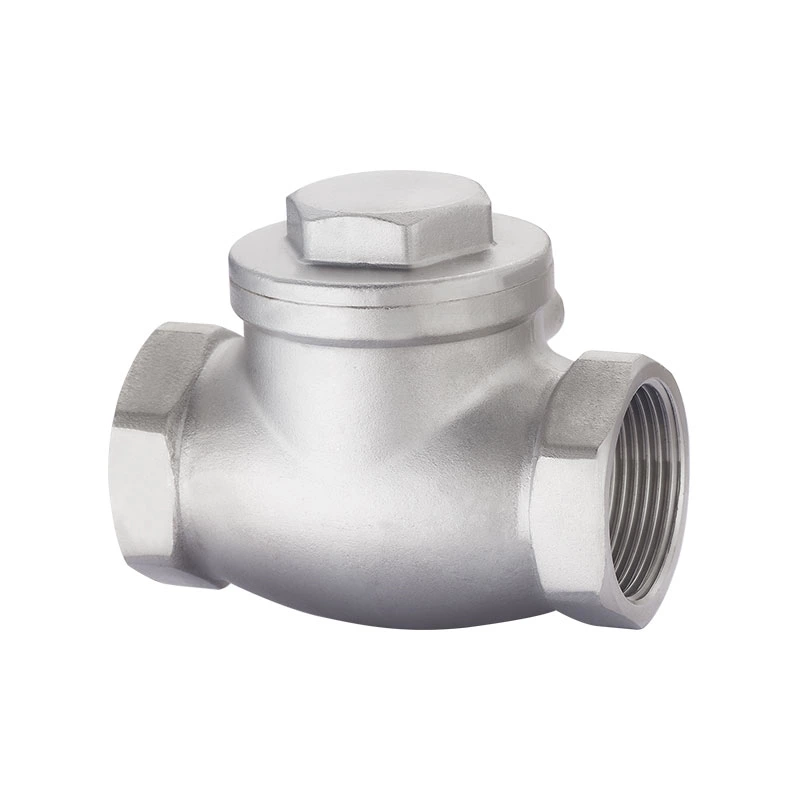

Horizontal Stainless Check Valve Screw End H14W-16P

Product Parameters H14 check valve connection type Thread Structure Spin starter Nominal diameter 1/2 "-3" (mm) Applicable medium Various highly corrosive chemical media Pressure env
MOQ:
1000pcs
Size:
1/4”-4”
Payment Terms:
T/T, L/C, PayPal, Wechat Payment

Product Description

Product Parameters

H14 check valve connection type

Thread

Structure

Spin starter

Nominal diameter

1/2 "-3" (mm)

Applicable medium

Various highly corrosive chemical media

Pressure environment

Atmospheric pressure

Standard

National standard

Flow direction

Unidirectional

Screw check valve drive mode

Manual

Working temperature

Normal temperature

Type (channel position)

Straight-through

Product Description

A basic swing Check valve consists of a valve body, a bonnet, and a disk that is connected to a hinge. The disk swings away from the valve-seat to allow flow in the forward direction, and returns to valve-seat when upstream flow is stopped, to prevent backflow.

The disc in a swing type Check valve is unguided as it fully opens or closes. There are many disk and seat designs available, in order to meet the requirements of different applications. The valve allows full, unobstructed flow and automatically closes as pressure decreases. These valves are fully closed when flow reaches zero, in order to prevent backflow. Turbulence and pressure drop in the valve are very low.

Horizontal Stainless Check Valve Screw End H14W-16P
