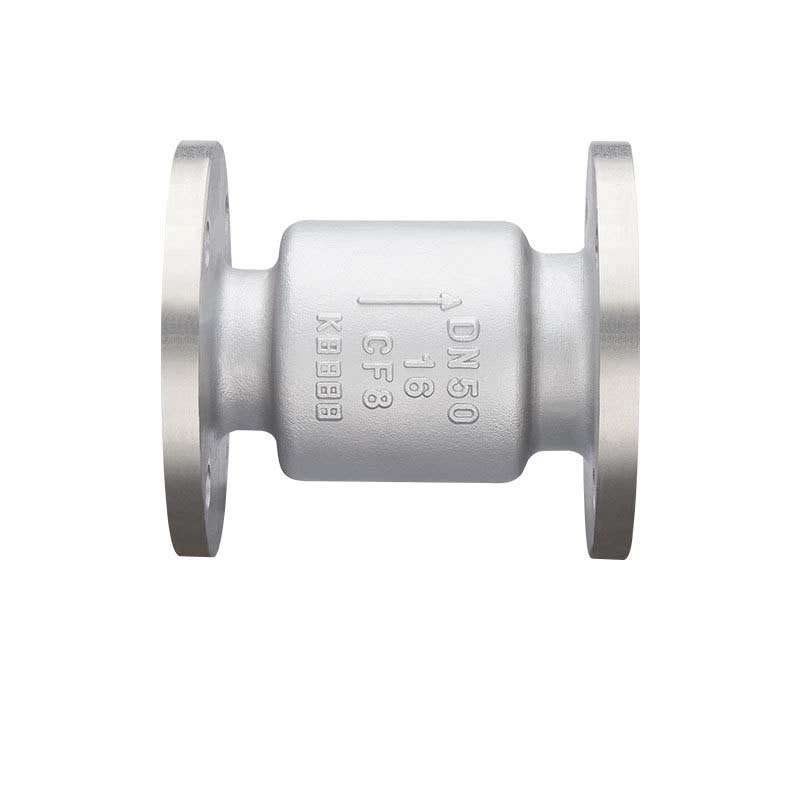

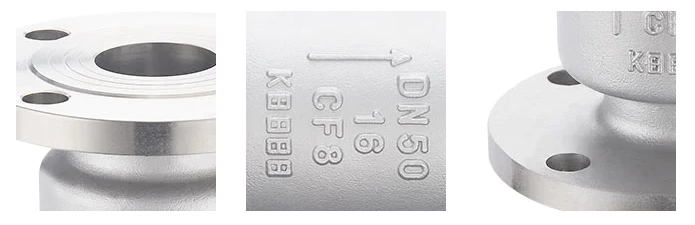

Flanged Check Valve Vertical Stainless Steel Check Valve
Product Features
Type
Vertiacl
Material
Stainless steel
Connection form
Flange
Pressure
PN16
Usage
Flow control
Application
Industrial Usage
Main Parameter
P/N
1000psi(6.
- MOQ：
- 1000pcs
- Size：
- 1/4”-4”
- Payment Terms：
- T/T, L/C, PayPal, Wechat Payment
Product Description
Product Features
|
Type |
Vertiacl |
|
Material |
Stainless steel |
|
Connection form |
Flange |
|
Pressure |
PN16 |
|
Usage |
Flow control |
|
Application |
Industrial Usage |
|
Main Parameter |
P/N |
|
1000psi(6.4Mpa) |
/ |
|
Construction |
Spring |
|
Port |
DN15-100 |
|
Connection |
BW, flange, SW, thread |
|
Standard |
EN, BS, DIN, ANSI, JIS |
|
Main materials |
WCB/CF3/CF3M/CF8/CF8M |
|
Suitable medium |
Water, air, oil, some corrosive liquid |
|
Temperature Range |
-20~230 degree C |
|
Standard |
BS 1868, ASME B16.34 |
|
Dimension |
ASME B16.10 |
|
Flange |
ASME B16.5 |
|
BW |
ASME B16.25 |
|
Test |
API 598 |
Product Description
H42W stainless steel flange of the vertical check valve normally closed, the pressure inlet medium in pipeline, and to overcome the spring force the valve open. When the inlet medium pressure lower than the export side, the valve spring seat and the valve closes to prevent backflow.
