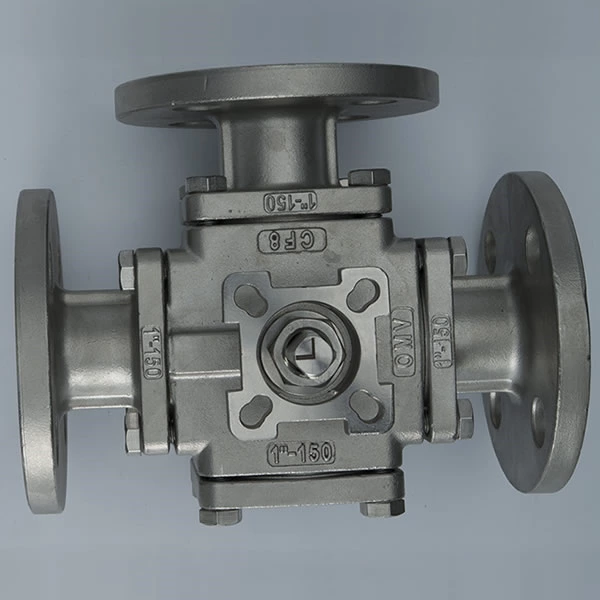

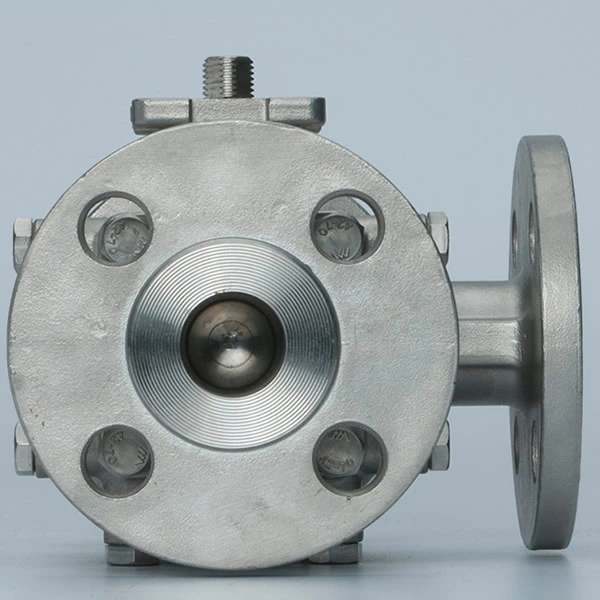

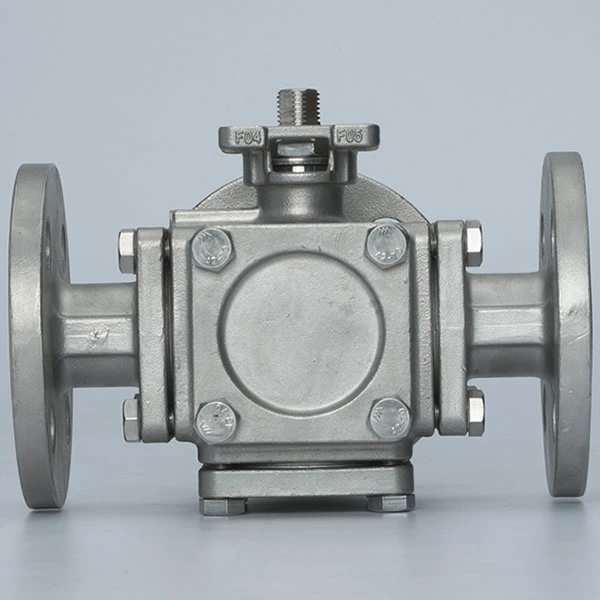

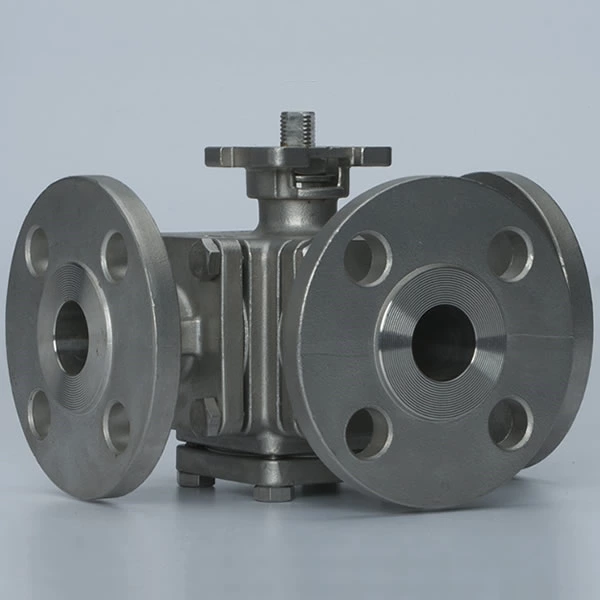

3 Way Manual Flanged Ball Valve
3 Way Manual Flanged Ball Valve
Product Features:
Float ball/Trunnion Ball option.
L type and T type port for choice.
Blow-out stem proof design.
PTFE/RPTFE/PPL seat seal (Seat seal material
- MOQ：
- 1 PCS
- Prices：
- Negotiable
- Working Temperature Range:
- 1000 wog
- Temperature range:
- -20~300ºC
- Payment Terms：
- L/C, D/A, D/P, T/T, Western Union
- Material：
- Stainless Steel
- Certification：
- ISO9001
- Packaging Details：
- Carton and wood case
- Delivery Time：
- Depends on the qty of order
- Supply Ability：
- 10000pcs per month
- Place of Origin：
- WENZHOU,CHINA
3 Way Manual Flanged Ball Valve
Product Features:
- Float ball/Trunnion Ball option.
- L type and T type port for choice.
- Blow-out stem proof design.
- PTFE/RPTFE/PPL seat seal (Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
- ISO 5211 high mounting pad for option.
- Fire-proof and anti-static design if need.
- Operation: Hand wheel, Lockable handle, Pneumatic actuator & Electric Actuator.
| Product Name | 3 Way Manual Flanged Ball Valve |
| 1. Material | SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc. |
| 2. Size | 1/4~2 inch (DN8~DN50) |
| 3. Connection ends | Flange |
| 4. Port | Reduce Port |
| 5. Working Pressure | 150LB~300LB |
| 8. Working Temp. | -20~300ºC, or according to customer requirements for different industry. |
| 9. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 10.Design & manufacture standard | API6D |
| 11. Pressure & Temp. standard | ASME 16.34 |
| 12. Face to face dimension standard | ASME 16.10 |
| 13. Flange standard | ASME16.5/16.34 |
| 14. Inspection & Testing | API598, API6D |
| 15. Certificate | ISO9001:2008, CE & TS |
| Shipment | |
| Delivery Time | 15~20 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
Flanged ball valve PN16 ~ PN63 is suitable for the working temperature - 29 ~ 180 ºC (seal for enhanced ptfe) or - 29 ~ 300 ºC (seal for para polystyrene) of various pipelines, used to truncate or on line in the medium, choose different materials, can be respectively suitable for water, steam, oil, nitric acid, acetic acid, and other media.
These are stainless steel, flanged ball valves in suitable for pressures up to 1,000 psi water, oil, or gas (at ambient temperature).
