3 Way Flange Direct Mounting Pad Ball Valve

MOQ:
1 PCS
Prices:
Negotiable
Working Temperature Range:
1000 WOG
Temperature range:
-20~300ºC
Payment Terms:
L/C, T/T, D/P, Western Union
Connection Form:
Flange
Thread Type:
Floating Ball Valve
Material:
Stainless Steel
Certification:
ISO9001
Packaging Details:
Carton and wood case
Delivery Time:
Depends on the qty of order
Supply Ability:
5000pcs per month
Place of Origin:
WENZHOU,CHINA
Contact Now

3 Way Flange Direct Mounting Pad Ball Valve

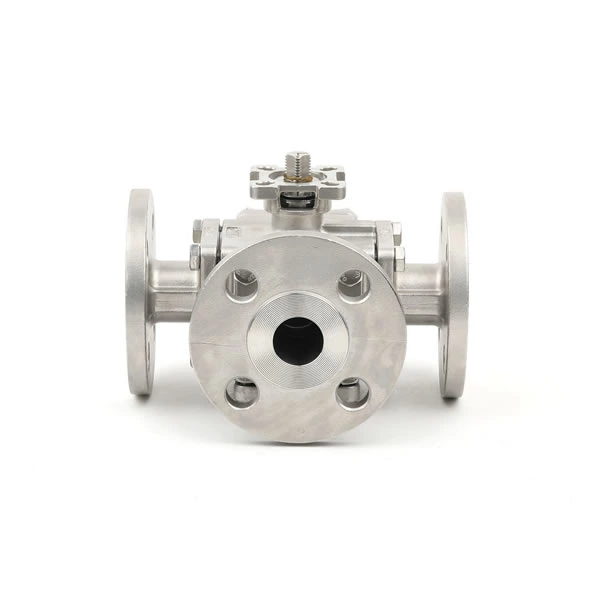

3 Way Flange Direct Mounting Pad Ball Valve 3 Way Flange Direct Mounting Pad Ball Valve2

3 Way Flange Direct Mounting Pad Ball Valve

Product Features:

  1. Float ball/Trunnion Ball option.
  2. L type and T type port for choice.
  3. Blow-out stem proof design.
  4. PTFE/RPTFE/PPL seat seal (Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
  5. ISO 5211 high mounting pad for option.
  6. Fire-proof and anti-static design if need.
  7. Operation: Hand wheel, Lockable handle, Pneumatic actuator & Electric Actuator.
Product Name 3 Way Flange Direct Mounting Pad Ball Valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size 1/4~2 inch (DN8~DN50)
3. Connection ends Flange
4. Port Reduce Port
5. Working Pressure 150LB~300LB
8. Working Temp. -20~300ºC, or according to customer requirements for different industry.
9. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
10.Design & manufacture standard API6D
11. Pressure & Temp. standard ASME 16.34
12. Face to face dimension standard ASME 16.10
13. Flange standard ASME16.5/16.34
14. Inspection & Testing API598, API6D
15. Certificate ISO9001:2008, CE & TS
Shipment
Delivery Time 15~20 Days
Package Standard Exporting Plywood Case
Shipping Terms Exw, FOB, CFR, CIF, etc.

Flanged 3 way ball valve platform PN16 ~ PN63 is suitable for the working temperature - 29 ~ 180 ºC (seal for enhanced ptfe) or - 29 ~ 300 ºC (seal for para polystyrene) of various pipelines, used to truncate or on line in the medium , choose different materials, can be respectively suitable for water, steam, oil, nitric acid, acetic acid, and other media.
These are stainless steel, flanged ball valves electric in suitable for pressures up to 1,000 psi water, oil, or gas (at ambient temperature).

Full line of quarter-turn control valves and ball valves are used in a wide range of applications across many different industries. From simple manual ball valves to complex automated rotary control valve packages, can provide the right solution.
