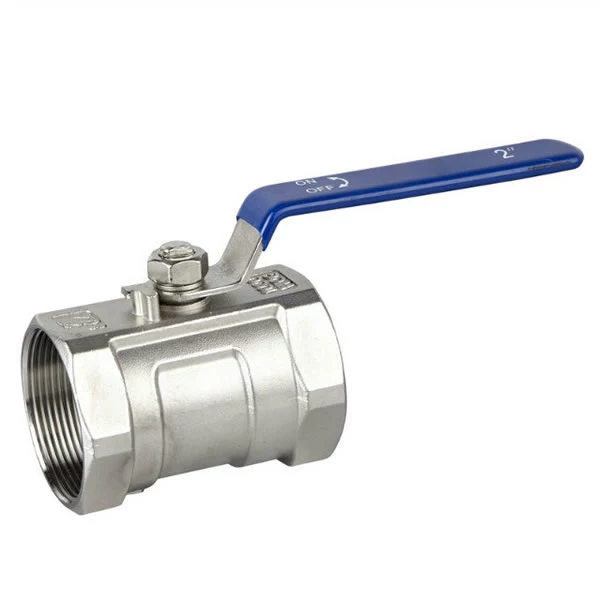

1PC Stainless Steel Full Bore Two Way Ball Valves CF8M 1000 WOG

1PC Stainless Steel Full Bore Two Way Ball Valves CF8M 1000 WOG Funcation description: Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floatin
MOQ:
1PCS
Prices:
Negotiable
Pressure:
1000PSI
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Certification:
ISO9001
Packaging Details:
Plywood Case
Delivery Time:
7-30 work days
Supply Ability:
10000PCS/Mouth
Place of Origin:
WENZHOU,CHINA

1PC Stainless Steel Full Bore Two Way Ball Valves CF8M 1000 WOG

Funcation description:

Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.

Standards:

  •  Design Standard:ANSI B16.34 / API 600 / API 602
  •  Inspection & Test: API 598
  •  Face To Face: ANSI B16.10
  •  Flange Connection: ANSI B16.5 (For NPS≤24) / ANSI B16.47 SERIES B, ANSI 16.47 SERIES A,   MSS SP-44 (For NPS >24)

 Application:

  1.  Applicable Temperature: -20℃ ~ 350 ℃
  2.  Main Materials: WCB/CF8/CF8M/CF3/CF3M
  3.  Applicable Medium: Water / Oil / Gas / Causticity Medium
  4.  Pressure Rating: 1000WOG
  5.  Size Range: 1/4" ~ 4"
