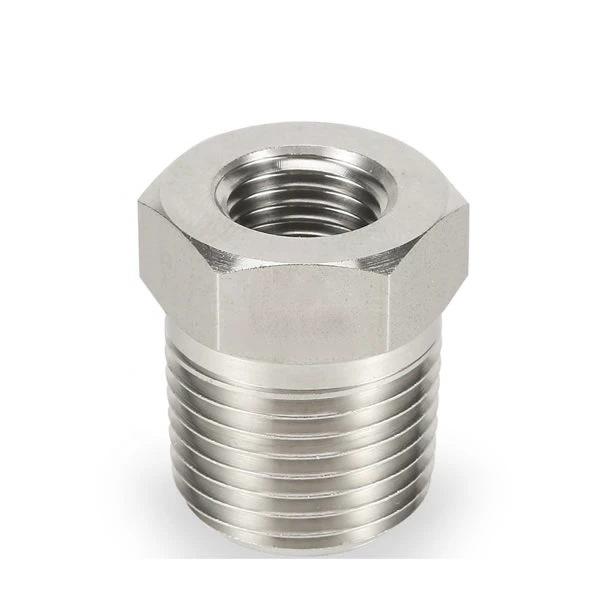

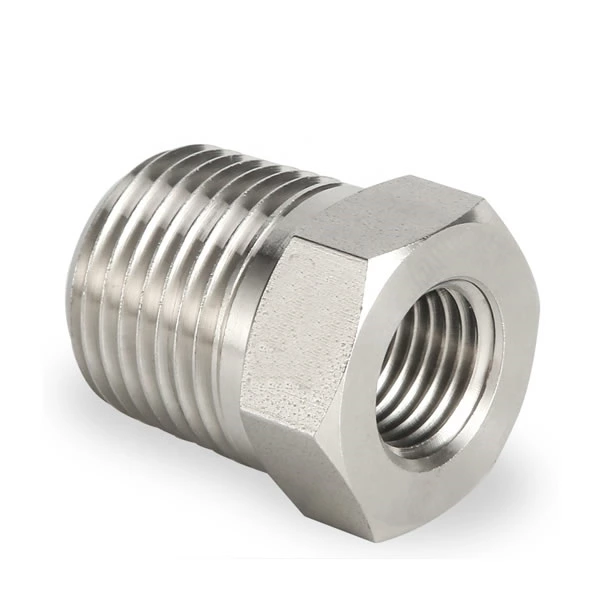

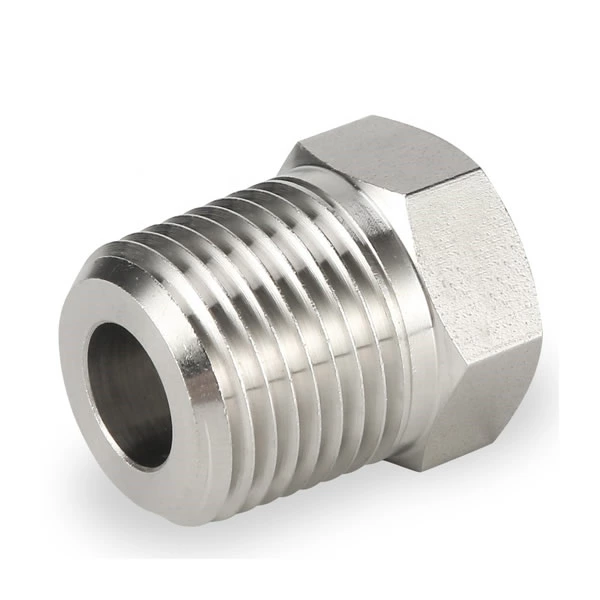

Instrumentation Pipe Fittings Hex Reducing Bushing Stainless steel 316/316L 1/2NPT 3/4 NPT 1/4 NPT 6000 PSI High Pressure Socket

Size:
1/8”~2”
Connection Form:
Male
Certification:
ISO 9001, CE
Shape:
Equal
Type:
Adapters

Instrumentation Pipe Fittings Hex Reducing Bushing Stainless steel 316/316L 1/2NPT 3/4 NPT 1/4 NPT 6000 PSI High Pressure Socket

  1. Size range from 1/8" to 2".
  2. Working temperature:-325℉~800℉ (-198℃~426℃).
  3. Material grades: SS 304/304L ,SS 316/316S.
  4. Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
  5. Zero leakage even under tough working conditions.
  6. All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT).
  7. Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code.
  8. Available in wide variety of configurations.

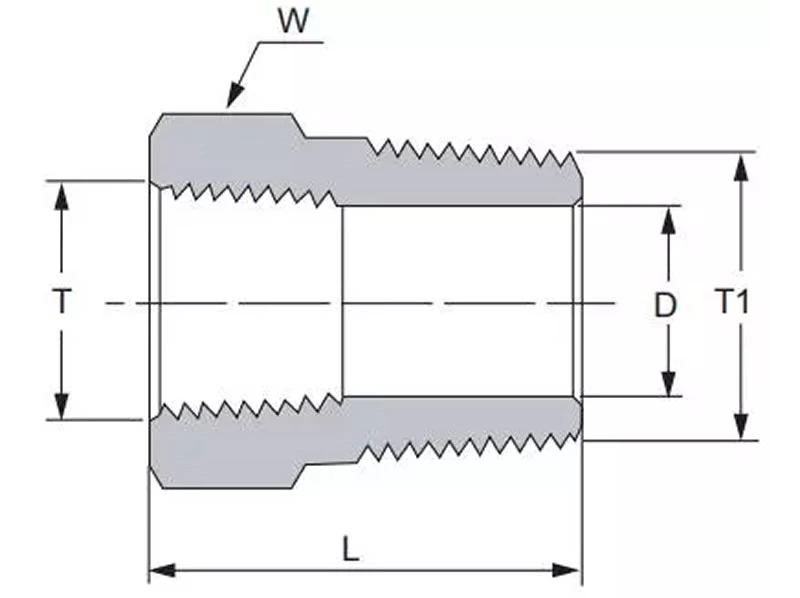

Instrumentation Pipe Fittings Hex Reducing Bushing Stainless steel 316/316L 1/2NPT 3/4 NPT 1/4 NPT 6000 PSI High Pressure Socket Dimension
